Friction modifiers are special additives incorporated into friction materials to fine-tune their tribological properties, specifically their friction coefficient, wear and NVH characteristics. They play a crucial role in achieving the desired balance between friction stability, noise reduction, and wear resistance in various applications like brake pads, clutch discs, and other friction-dependent components.
Common types of Friction Modifiers
Friction modifiers are typically classified based on their chemical composition and their primary function in influencing friction and wear behavior. Here are some of the most commonly used types:
Metallic sulfides
Such as molybdenum disulfide (MoS2), antimony trisulfide (Sb2S3), iron sulfide (FeS), tin sulfide (SnS). These materials form a low-friction film on the contact surfaces, reducing friction and wear. They are particularly effective at high temperatures and pressures, making them valuable in applications like brake pads and clutch discs.
- Advantages: Excellent high-temperature performance, good friction stability, and wear reduction.
- Considerations: Some metallic sulfides, like those containing antimony, are being phased out due to environmental concerns.
Graphite
A naturally occurring form of carbon that acts as a solid lubricant. It reduces friction and wear by forming a slippery film on the contact surfaces.
- Advantages: Widely available, cost-effective, excellent high-temperature stability, and good electrical conductivity.
- Considerations: Can contribute to dusting and noise in some formulations.
Organic friction modifiers
Such as fatty acids, esters, amides or cashew friction dust. These organic compounds interact with the friction material and the mating surface, influencing friction behavior and improving NVH (noise, vibration, and harshness) characteristics.
- Advantages: Can provide a wide range of friction and wear control, effective at lower temperatures, and can help reduce noise and vibration.
- Considerations: May have limited high-temperature stability compared to some inorganic modifiers.
Ceramic materials
Such as alumina, silica, zirconium silicate or titanates. They can act as mild abrasives to maintain a clean and consistent surface on the friction material, promoting stable friction performance. Some ceramic materials can also contribute to the formation of beneficial tribo-films.
- Advantages: High hardness and wear resistance, good thermal stability, and can help control friction and NVH.
- Considerations: Can increase the wear rate of the mating surface if not carefully balanced in the formulation.
Other modifiers
- Carbon fibers: Can enhance friction stability and wear resistance, particularly at high temperatures.
- Metallic particles: Copper, brass, or other metals can be added to improve thermal conductivity and friction characteristics.
- Friction dust: The wear debris generated during braking can itself act as a friction modifier, influencing the tribological behavior of the system.
How Friction Modifiers work
Friction modifiers in friction materials play a crucial role in achieving desired tribological properties like a stable coefficient of friction, reduced wear, and noise control. Here’s a breakdown of their primary action mechanisms:
Formation of tribo-films (third body layer)
- Chemical reactions: Under the high temperatures and pressures generated during friction, certain friction modifiers react with the friction material or the mating surface (rotor or disc). This reaction leads to the formation of a thin, often complex, layer called the tribo-film or third body layer.
- Transfer and deposition: Some modifiers, particularly solid lubricants like graphite or molybdenum disulfide (MoS2), may transfer from the friction material to the mating surface, forming a lubricating film.
Abrasive action
- Surface cleaning: Some friction modifiers, often harder ceramic particles like alumina or silica, act as mild abrasives. They help remove surface contaminants and wear debris, ensuring a clean and consistent contact interface for stable friction performance.
- Counterface modification: The abrasive action can also subtly modify the mating surface, creating microscopic grooves or textures that can influence friction behavior.
Chemical modification
- Surface passivation: Certain friction modifiers can react with the surface of the friction material or the mating surface, forming a protective layer that reduces its reactivity. This helps prevent undesirable chemical reactions that can lead to increased friction, wear, or corrosion.
Filler and reinforcement effects
- Load distribution: Some fibrous or particulate friction modifiers can act as fillers or reinforcements within the friction material matrix. They can contribute to the material’s overall strength and stiffness, helping to distribute the load more evenly during friction and reduce localized wear.
Friction materials rarely rely on a single modifier. Often, multiple modifiers are used in combination to achieve the desired performance profile. This leads to complex interactions and synergistic effects between the modifiers, which can significantly influence friction and wear behavior. Additionally, the formation and modification of the tribo-film is a dynamic process that continuously evolves during friction. This dynamic nature makes understanding its behavior under different operating conditions a complex but crucial aspect of friction material development.
Effects on wear reduction and performance improvement
These tribo-films can:
- Reduce friction: By acting as a lubricant, they decrease the direct contact between the asperities (roughness peaks) of the two surfaces.
- Control wear: The film acts as a sacrificial layer, protecting the underlying friction material and mating surface from excessive wear.
- Influence friction stability: The composition and properties of the tribo-film can significantly affect the coefficient of friction, helping to maintain a stable and predictable braking or clutching response.
- Affect NVH: The film’s properties can also influence noise and vibration generation during friction.
Applications and benefits of Friction Modifiers
In the automotive industry
Friction modifiers are indispensable in tailoring the performance of automotive brake pads to meet the demands of modern vehicles and stringent safety and environmental regulations. They contribute to enhanced braking performance, improved durability, reduced noise and vibrations, and a more sustainable and eco-friendly driving experience.
Enhanced friction stability
- Consistent braking performance: Friction modifiers help to maintain a stable coefficient of friction across a wide range of temperatures and operating conditions, from cold starts to intense braking scenarios. This consistency ensures reliable and predictable braking performance, enhancing driver confidence and safety.
- Reduced brake fade: By regulating the friction coefficient and minimizing heat buildup, friction modifiers help prevent brake fade, a dangerous phenomenon where braking performance decreases under high temperatures.
Improved wear resistance
- Longer brake pad life: Friction modifiers, acting as protective films or sacrificial layers, minimize wear on both the brake pad and the rotor. This extends the service life of the brake pads, reducing maintenance frequency and costs.
- Reduced rotor wear: By controlling friction and wear, these additives also help to protect the brake rotors, ensuring their longevity and optimal performance.
Noise and vibration reduction (NVH)
- Quieter braking: Friction modifiers play a crucial role in dampening vibrations and reducing noise generation during braking, enhancing driver and passenger comfort. They help to eliminate squealing, groaning, or other unpleasant noises that can occur during braking.
Optimized cold performance
- Effective braking from the start: Certain friction modifiers improve friction performance at low temperatures, ensuring that the brakes respond effectively even when the system is cold. This is particularly important for safety in cold climates or during initial braking after a period of inactivity.
Reduced environmental impact
- Lower emissions: With increasing environmental regulations, friction modifiers are being developed to reduce the emission of harmful particulate matter and other pollutants during braking. This contributes to cleaner air and a healthier environment.
In the railway industry
Friction modifiers play a critical role in railway brake blocks and pads, just as they do in automotive applications. However, the specific demands and challenges faced by railway braking systems call for unique considerations in the selection and application of friction modifiers. Let’s explore their primary applications:
Consistent friction performance
- Wide range of operating conditions: Trains operate under a vast range of conditions, from slow speeds and frequent stops in urban environments to high speeds and prolonged braking in long-distance travel. Friction modifiers help maintain consistent friction performance across these diverse scenarios, ensuring safe and reliable braking at all times.
- Wet and contaminated conditions: Railway tracks are exposed to the elements and can become wet, dirty, or even icy. Friction modifiers help to ensure effective braking even in adverse conditions, minimizing the risk of skidding or loss of control.
Wear Reduction
- Extended service life: Railway brake blocks and pads experience significant wear due to the high loads and long braking distances involved in train operations. Friction modifiers reduce wear on both the friction material and the wheel tread, extending their service life and reducing maintenance costs.
- Economic benefits: Longer component life translates to less frequent replacements, reducing material costs and downtime associated with maintenance.
Noise and Vibration Reduction
- Passenger comfort: Noise and vibration generated during braking can significantly impact passenger comfort. Friction modifiers, especially those designed for NVH control, help to minimize these issues, creating a more pleasant travel experience.
- Environmental impact: Reduced noise levels from train braking contribute to a quieter and more livable environment for communities located near railway lines.
Thermal stability
- High-temperature performance: Railway braking systems, especially those used in high-speed trains or heavy freight operations, can generate significant heat during braking. Friction modifiers with high thermal stability maintain consistent friction performance and prevent fade, even under extreme temperatures.
Specific challenges in railway applications
- Heavy loads and long braking distances: Trains carry heavy loads and require long braking distances, putting immense stress on the braking system. Friction modifiers must be able to withstand these demanding conditions and provide consistent performance over prolonged braking events.
- Environmental considerations: Railway operations can impact the environment through emissions and noise pollution. Friction modifiers are increasingly being developed to be more environmentally friendly, with reduced emissions and improved biodegradability.
Case studies and real examples
The use of sulfides as friction modifiers in brake pads is well-established, with numerous studies and real-world applications showcasing their effectiveness in improving performance and reducing wear. Let’s delve into a relevant case study to illustrate their impact:
Case study: Improving high-temperature performance and fade resistance

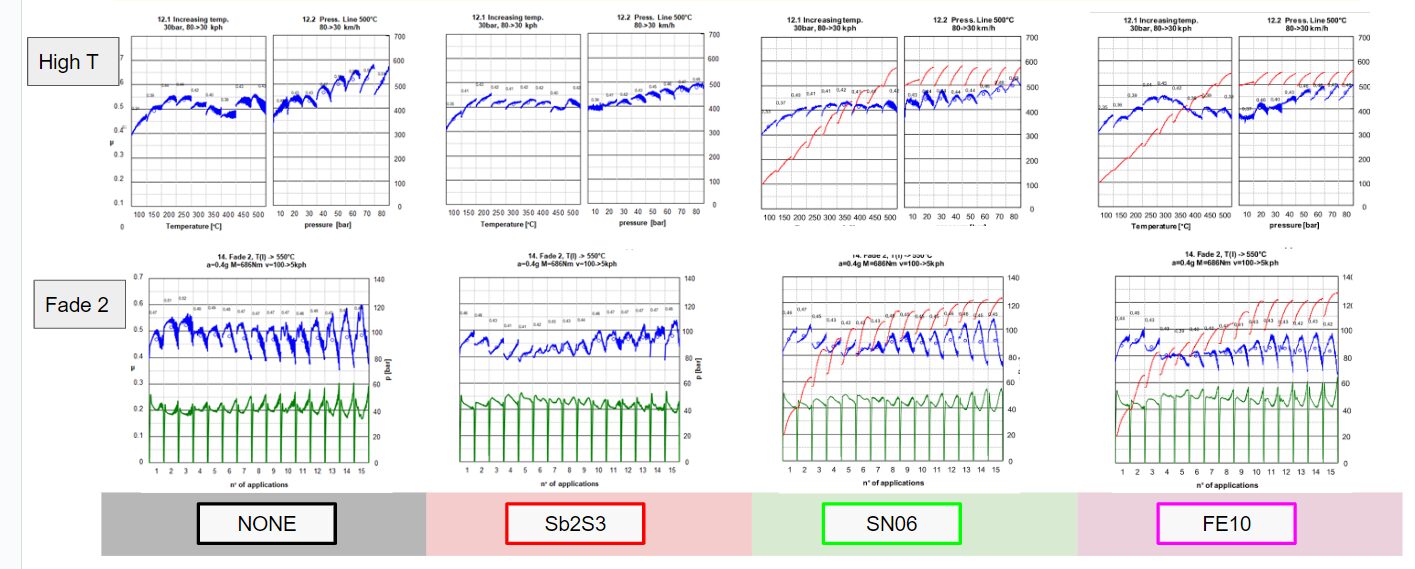

Objective: To investigate the effects of different sulfide additives (Sb2S3, SnS, and FeS) on the friction stability and fade resistance of a commercial brake pad formulation at elevated temperatures.
Methodology:
- Friction material preparation: Brake pad samples were prepared with varying amounts of the selected sulfide additives.
- AKMaster testing: The samples were subjected to AKMaster dynamometer testing, simulating real-world braking conditions with increasing temperatures and pressures.
- Performance evaluation: Friction coefficient, wear rate, and fade behavior were analyzed and compared between the different formulations.
Results and Improvements Observed:
- Reduced friction variability at high temperatures: The addition of any of the sulfides significantly reduced the in-stop coefficient of friction variability in the high-temperature sections of the AKMaster tests (as seen in the “High T” graphs). This indicates improved friction stability, meaning the brake pads maintained a more consistent braking force even when subjected to intense heat.
- Improved fade resistance: All sulfide-containing formulations demonstrated enhanced fade resistance compared to the baseline formulation without any sulfide. The “Fade 2” graphs show a less pronounced drop in the coefficient of friction during repeated braking cycles at high temperatures, particularly for the Sb2S3 and SnS formulations.
- Specific sulfide performance: Sb2S3 and SnS exhibited the best performance at high temperatures, suggesting their superior ability to form stable and effective tribo-films under demanding conditions.
Conclusion:
This case study demonstrates the significant impact of sulfide additives on improving the high-temperature performance and fade resistance of brake pads. The formation of a lubricating tribo-film by sulfides reduces friction and wear, leading to a more consistent and reliable braking response even under extreme conditions. These findings highlight the importance of carefully selecting and optimizing sulfide friction modifiers to achieve desired performance characteristics in brake pad formulations.
Summary of benefits and applications of Friction Modifiers
Friction modifiers are indispensable components in friction materials, enhancing their performance, durability, and overall efficiency. Their ability to reduce friction and wear, improve thermal stability, and control noise and vibrations makes them essential in a wide range of applications, including automotive brake pads, clutch discs, industrial machinery components, and aerospace braking systems.
- Improved performance: Friction modifiers enhance friction stability, fade resistance, and cold performance, ensuring consistent and reliable braking or power transmission under various operating conditions.
- Increased component life: By reducing wear and tear, they extend the service life of friction materials and mating surfaces, leading to reduced maintenance costs and improved system reliability.
- Enhanced user experience: Friction modifiers contribute to smoother operation, reduced noise, and vibrations, enhancing comfort and overall user satisfaction.
- Environmental benefits: With the development of more sustainable and eco-friendly friction modifiers, the industry is moving towards reducing emissions and minimizing the environmental impact of friction materials.
Considerations for the selection of friction modifiers
Choosing the right friction modifiers for a specific application requires careful consideration of several factors:
- Performance requirements: The desired friction characteristics, wear resistance, and NVH behavior dictate the selection of suitable modifiers.
- Operating conditions: Factors like temperature, pressure, sliding speed, and environmental conditions influence the effectiveness of different modifiers.
- Compatibility: Modifiers must be compatible with the base friction material and the mating surface to avoid adverse interactions and ensure optimal performance.
- Environmental regulations: Compliance with increasingly stringent regulations regarding emissions and the use of hazardous substances is crucial.
- Cost: While some advanced friction modifiers may have a higher upfront cost, their benefits in terms of improved performance and extended component life can lead to long-term cost savings.
In conclusion, friction modifiers play a vital role in tailoring the performance of friction materials to meet specific application requirements. Their ability to enhance durability, improve efficiency, and reduce environmental impact makes them indispensable in the modern world of friction technology. As research and development continue to advance, we can expect even more innovative and sustainable friction modifiers to emerge, further improving the performance and longevity of friction-dependent systems.
FAQs: Friction Modifiers for Friction Materials
What is a friction modifier?
Friction modifiers are special additives mixed into brake pads and clutches. They help control how much friction happens, how quickly things wear out, and how much noise they make.
How do they improve performance?
- Make braking or clutching smoother and more consistent
- Make parts last longer by reducing wear and tear
- Help things run quieter by cutting down on noise and vibrations
- Stop brakes from fading (getting weaker) when they get hot
- Make brakes work better even when it’s cold outside
What are some common types?
- Metallic sulfides: Great for high temperatures, less wear, good for brakes and clutches in tough conditions
- Graphite: A natural lubricant, helps things slide easily, good for high temperatures and electrical parts
- Organic friction modifiers: Help control friction and noise, especially when it’s cold
- Ceramic materials: Act like a gentle scrub, keep surfaces clean for better friction, good for high-performance brakes
Why are they good for durability and efficiency?
- Parts last longer: Less wear means less need to replace things, saving money and resources
- Save energy: Less friction means less energy wasted as heat, which is good for fuel economy or machines
- Better performance: Smoother, quieter, and more reliable operation
How do I pick the right one?
The right friction modifier depends on what you need it for. Think about:
- What it needs to do: How much friction, how much wear is okay, how much noise is acceptable
- How it will be used: Temperature, pressure, how fast things are moving, and the environment
- What it’s going into: It needs to work well with the other materials
- Environmental rules: Make sure it’s allowed where you’re using it
- Cost: Balance the benefits with the price
